TT1600R Parts List and Exploded Views



No.Part NumberDescriptionPriceDetails
100248Rubber Grommet (Part #00248)$1.00View Item
300137Bolt, HH Flange, M6X40 (Part #00137)$1.00View Item
400250Spacer, Rubber Grommet (Part #00250)$0.24View Item
500132Nut, Nylock M6 (Part #00132)$0.25View Item

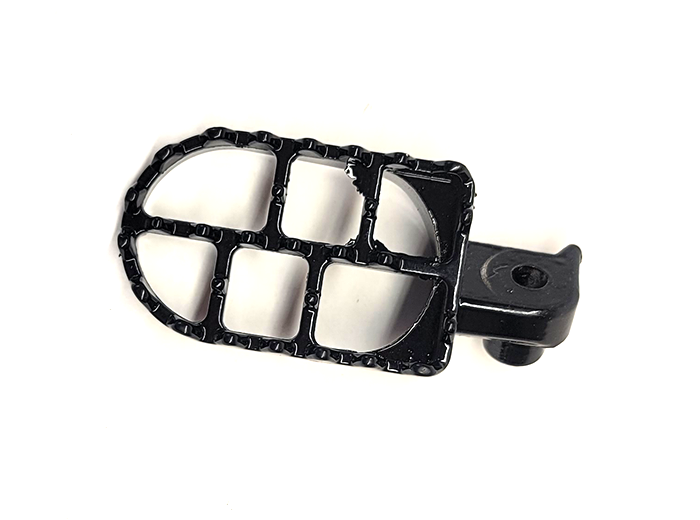

610222Foot Peg-Left (Part #10222)$14.00View Item
710223Foot Peg Mount Bracket-Left (Part #10223)$10.50View Item
800147Bolt, HH Flange M8x45 (Part #00147)$1.00View Item
900174Lock Nut M8 (Part #00174)$0.75View Item

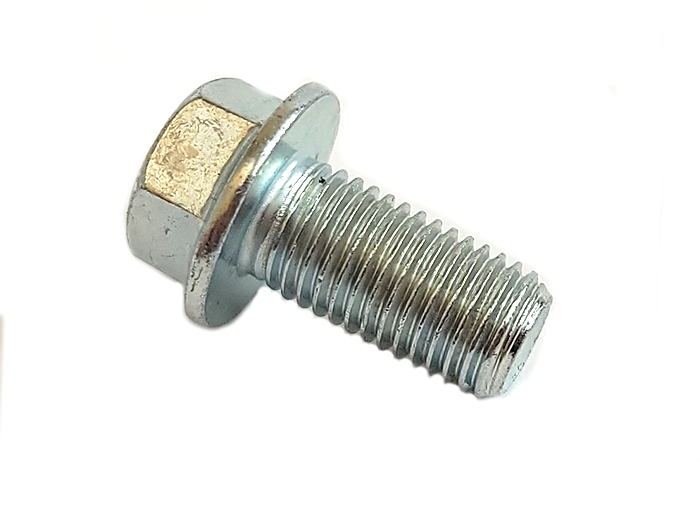

1000254Bolt, HH Flange-M10X20 (Part #00254)$0.61View Item
1100255Nut, Self Locking-M10 (Part #00255)$0.45View Item
1200256Spring, Footpeg Tension-Left (Part #00256)$0.24View Item
1310224Foot Peg Mount Bracket-Right (Part #10224)$10.50View Item

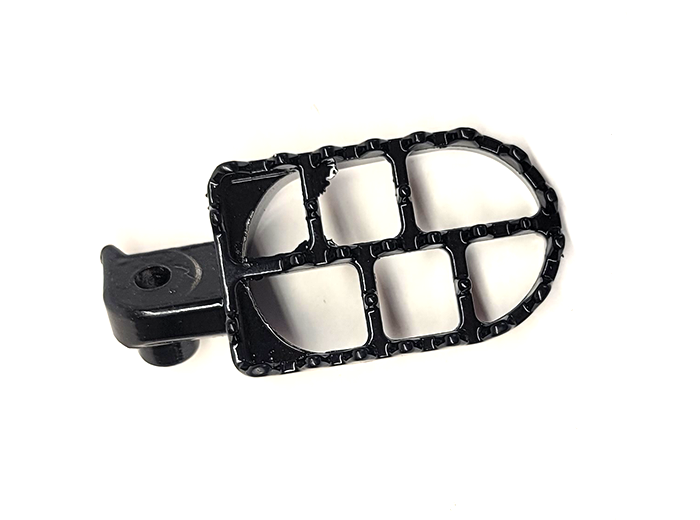

1410225Foot Peg-Right (Part #10225)$14.00View Item
1500257Spring, Footpeg TensionRight (Part #00257)$0.24View Item

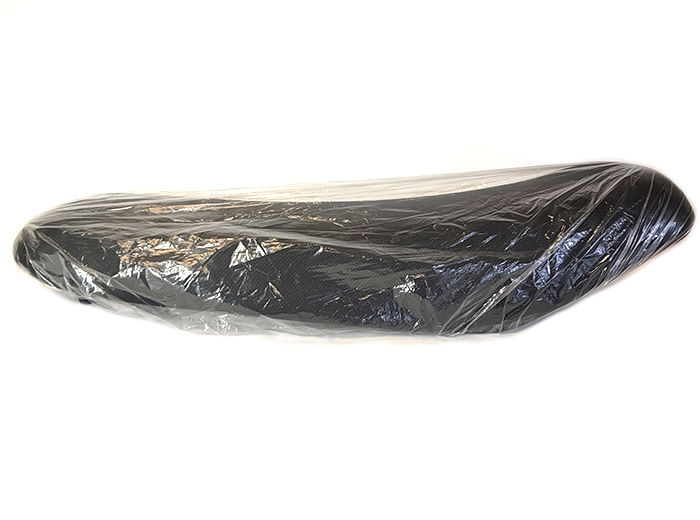

1610226Seat for the TT1600R (Part #10226)$26.95View Item
1700258Washer, Flat 6 (Part #00258)$0.12Out of Stock
1800229Screw, Button Head SHCS-M6X16 (Part #00229)$0.12View Item

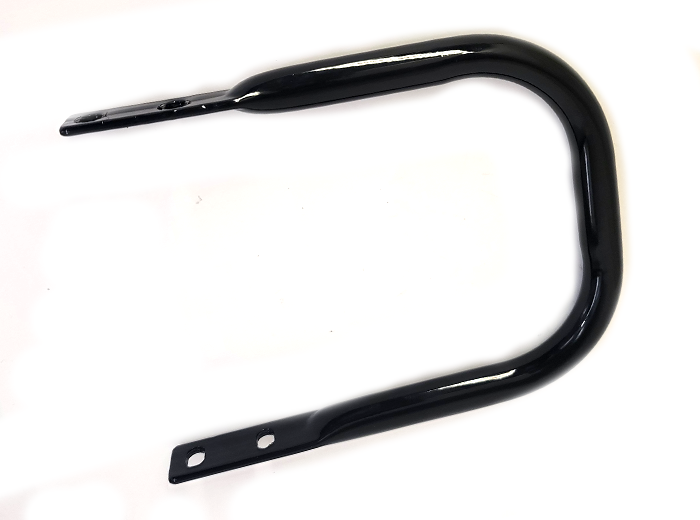

1910227Grab Rail (Part #10227)$8.50View Item
2000260Screw, SHCS-M6X16 (Part #00260)$0.12Out of Stock
2100261Nut, Self Locking-M6 (Part #00261)$0.20Out of Stock
2200262Screw, SHCS-M6X16 (Part #00262)$0.12Out of Stock
